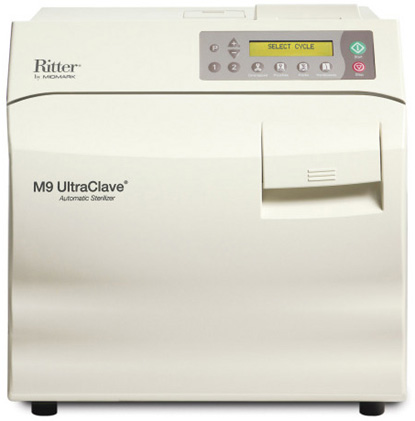

Ritter M9 UltraClave Automatic Sterilizer
Ritter M9 Ultraclave-fully Automatic Sterilizer with automatic door and easy to operate
The M9 autoclave couldn’t be easier and is time tested for reliability.
You simply load it…set it…and forget it.
- Select your cycle and the time is set for you.
- Press “Start” and the M9 fills with the correct amount of water.
- Once the sterilization process is complete, the door opens automatically and quietly to dissipate the steam, giving you fast drying time for your instruments.
Features include:
- Exclusive automatic-opening door for ease of use and a quick drying time
Steam–Flush Pressure Pulse Air Removal System ensures proper steam penetration
Self Program Controls enable you to create different cycle parameters to meet specific instrument processing needs
Pre-Programmed Controls for convenience
LCD Display for easy view of indicators
- Easy front access for filling and draining and controls that are easy to understand;
Ritter M9 UltraClave Automatic Sterilizer
Programmable cycle features allow custom creation of different cycle parameters for special sterilization needs.
Programmable buttons allow you to change the following:
- Time (3 to 90 minutes),
- Temperature (230 to 275ËšF),
- Dry Time (0 to 60 minutes),
- Vent (slow or fast) and two program buttons allow you to store the custom cycles.
Pre-programmed sterilization cycle controls:
- Unwrapped (132º C or 270º F for 3 minutes),
- Pouched (132º C or 270º F for 5 minutes), and
- Packs (121º C or 250º F for 30 minutes).
The display Indicates cycle selected, cycle temperature and exposure time for selected cycle.
Specifications:
- Unit weight: 73 lbs. (33.1 kg)
- Shipping weight: 81 lbs. (36.7 kg)
- Overall length w/plug: 20.4" (51.8 cm)
- Overall width: 15.3" (38.9 cm)
- Overall height w/printer: 15.8" (40.1 cm)
- Minimum Countertop area: 15.3" x 17.9" (38.9 cm x 45.4 cm)
- Countertop area: 15.3” x 20.38” (38.9 cm x 51.8 cm)
Chamber:
- 9" diameter (22.9 cm)
- 15" depth (38.1 cm)
- 3.5 gal. usable volume (13.4 liters)
Trays:
- Two large – 7 5/16” W x 12” L x 7/8” D (18.6 cm x 30.5 cm x 2.2 cm)
- Two small – 5 5/8” W x 12” L x 7/8” D (14.3 cm x 30.5 cm x 2.2 cm)
- Water reservoir capacity: 1.1 gal. (4.1 liters)
Electrical Requirements
- 115 VAC, 50/60 Hz, 15 AMPS Single Phase
- 115 VAC has 1425-watt tubular immersion heater
- UL61010A-1, UL61010-2-041
- CAN/CSA C22.2 No. 1010
- CAN/CSA C22.2 No. 1010.2-041-96
Safety Standards
UL61010-1, UL61010-2-040
CAN/CSA C22.2 No. 61010-1
CSA C22.2 No. 61010-2-040-07 Part 2-040
Meets the requirements of ASME Boiler and Pressure Vessel Code
Canadian Registration Number (CRN) available
A separate (dedicated) circuit is recommended for this sterilizer
