  • INNOVATIVE The MI 500 light is part of the “cutting-edge” MI LED SERIES by Medical Illumination International.

  • EFFICIENT The MI 500’s LED life averages 50,000 hours. It uses significantly less electric consumption than standard halogen lights.

  • COOL The MI 500’s light beam and head emit very low heat and are part of our LED solution.

  • BRIGHT The MI 500 light is output rated at 40,000 lux (3,700 foot candles) at a distance of 24”. It is whiter, a more color-correct light.

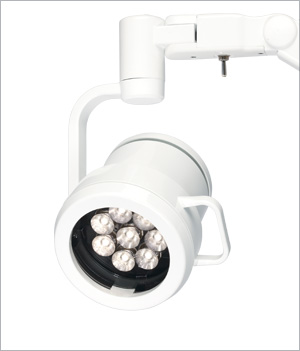

  • COMPACT Its 6” diameter head design is small but powerful and has great arm articulation

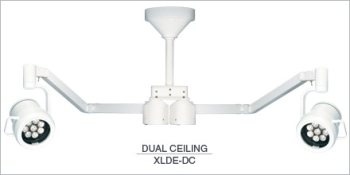

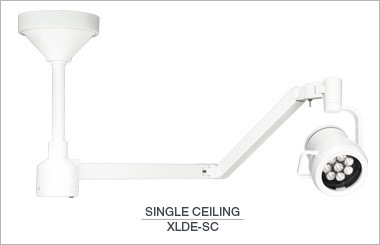

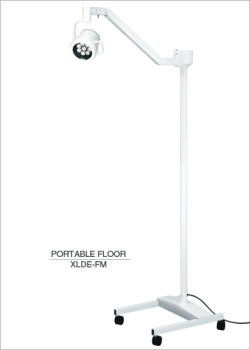

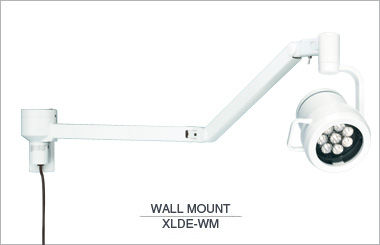

  • VERSATILE Comes with a variety of mounting options, wall mount, portable, single and dual ceiling mounts, and ceiling track mounting
    *Click here to view available mounting arm sizes and extension kits

  • CONVENIENT Available with optional sterilizable handle

Mechanical
Parameter                   Value
Weight
Head                               Approximately 13.5 lbs. (6.1 kg).

Arm                                 Approximately 12.5 lbs. (5.7 kg).
Arm (Floor)                    Approximately 11.5 lbs. (5.2 kg).
Wall Bracket Assy.       Approximately 3.0 lbs. (1.4 kg).
Floor Stand Assy.         Approximately 43.0 lbs. (19.5 kg).
Single Ceiling Mount    Approximately 14.5 lbs. (6.6 kg).
Dual Ceiling Mount         Approximately 16.0 lbs. (7.3 kg).

Dimensions
Head                                     18” (457 mm) Dia. X 4” High (102 mm)
Arm                                       57.0” (1448 mm) Long
Arm (Floor)                          38.5” (978 mm) Long
Floor Stand                         74.5” (1892 mm) High

Rotations
Articulating Arm Vertical Movement            +/- 40 Degrees travel
Articulating Arm Horizontal Movement       Approximately 345 Degrees
Articulating Arm/Yoke Interface                    Approximately 540 Degrees
Yoke/Lamp Head Interface                           Approximately 190 Degrees


Electrical
Parameter                                                           Value
Input Voltage                                        100 – 240 VAC 50/60 Hz
Power Consumption                          Approx 60W max
LED life                                                 50,000 hours (average)

Optical
Parameter                                                              Value
36 Inner optics + 6 Outer optics                     Clear acrylic, multi-source

Performance
Color temperature                                           4000 K
Focal length                                                       39” (1 meter)
Central illuminance (full intensity)                6600 foot-candles (71000 Lux)
Dimming – 5 levels                                     100%      87%      75%      63%      50%    of full intensity
                                                                           70k       62k         53k       44k       35k      Lux

Light field diameter (d10)                            Approx 9”
Light field diameter (d50)                             Approx 5”
Depth of illumination                                    Approx 50”


Shadow Dilution
Illuminance (one mask)                              Approx 2200 foot-candles
Illuminance (two masks)                             Approx 2900 foot-candles
Illuminance (tube with one mask)             Approx 2200 foot-candles
Illuminance (tube with two masks)           Approx 2900 foot-candles
Irradiance                                                      Approx 48.55 W/m2
CRI                                                                  ≥85

Environmental
Parameter                                      Value
Operating Temperature                            41-104 °F (5-40 °C)
Storage Temperature Range                 41-113 °F (5-45 °C)


Humidity
10 - 90% Relative Humidity







ARM SIZES AND EXTENSION KITS

 CR1616" Ceiling Rod (For Approx. 7' 6"-8' 6" Mount)
 CR2525" Ceiling Rod (For Approx. 8' 7"-9' 6" Mount)
 CR3535" Ceiling Rod (For Approx. 9' 7"-10' 1" Mount)
 ECK-44Extended Ceiling Kit (for Approx. 10 '2" - 10' 10" Mount)
 ECK-53Extended Ceiling Kit (for Approx. 10' 11" - 11' 8" Mount)
 ECK-63Extended Ceiling Kit (for Approx. 11' 9" - 12' Mount)
 ECK-67Extended Ceiling Kit (for Approx. 12' 1" - 12' 10" Mount)
 ECK-77Extended Ceiling Kit (for Approx. 12' 11" - 14' Mount)
