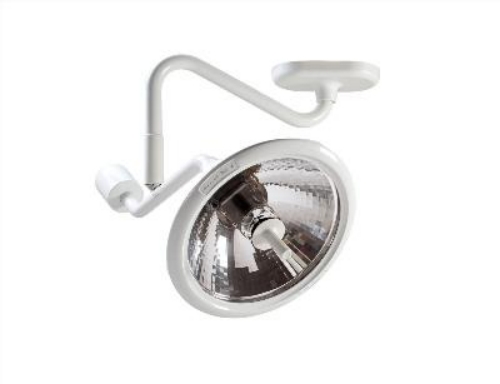

Ritter 255 Procedure Light Specifications
- Illumination at 39" (1 m)
- Focal length: 7,500 fc (80,700 lux)
- Pattern diameter: 7.5" (19 cm)
- Depth of field: 29.8" (75.8 cm)
- Color temperature: 4,400 K
- Diameter of light head: 20" (50.8 cm)
- LED Light Module: 16 LEDs arranged in 4x4 array, 32 Watt rating.
Whether you practice in an office environment or specialized procedure area, your work requires superior, white, shadow-free illumination. The Ritter 255 LED Procedure Light is designed to deliver superior, quality illumination that is affordable. The combination of the optics enhances one’s ability to see color variations in tissue and is intended to aid you in a more accurate diagnosis and treatment. Features include:
- 7,500 footcandles – significantly more light intensity of similar products
- An exceptional color rendering index of greater than 95 (out of 100)
- A color temperature of 4,400 K
- Integrated controls on both sides of the light head
- Counterbalanced design requiring less force to position and help eliminate drifting
- Ergonomic yoke design for an expanded range of motion
Click For more information on Ritter 255 Procedure Light
Ritter 255 Procedure Light OPTIONS:
255-001 Single Mount, 8' Ceiling LED Light
255-002 Single Mount, 9' Ceiling LED Light
255-003 Dual Mount, 8' Ceiling LED Light
255-004 Dual Mount, 9' Ceiling LED Light
255-005 Mobile Procedure Light
255-006 Wall Mount
ACCESSORIES:
002-1865-00 10' Ceiling Mount Adapter Kit
9A584001 Conversion kit w/cover (single to double light)
The following systems are recommended based on the following ceiling heights (measured from the bottom of the ceiling surface to the floor):
Less than 8' Mobile Procedure Light
8' to 9' 8' Single or Dual Procedure Light
9' to 10' 9' Single or Dual Procedure Light
Greater than 10' 8' Single or Dual Procedure Light with 10' Ceiling Mount Adapter Kit(s)
or Mobile Procedure Light
To convert an existing single light system to a dual system, a 9A280001 Conversion kit w/cover must be ordered in addition to a second 8' (2.4 m) or 9' (2.7 m) system. UL 2601-1 and CAN/CSA C22.2 No. 601.1
Ritter 255 Procedure Light Specifications
- Illumination at 39" (1 m)
- Focal length: 7,500 fc (80,700 lux)
- Pattern diameter: 7.5" (19 cm)
- Depth of field: 29.8" (75.8 cm)
- Color temperature: 4,400 K
- Diameter of light head: 20" (50.8 cm)
- LED Light Module: 16 LEDs arranged in 4x4 array, 32 Watt rating.
Electrical
- 115 VAC, 50/60 Hz, 0.7 amps
- 230 VAC, 50/60 Hz, 0.5 amps
- Classified by TUV with respect to electric shock, fire, mechanical and luminaries for diagnosis hazards only in accordance with IEC/ES 60601-1, CAN/CSA C22.2 60601-1, 60601-1-2, 60601-2-41, CE Medical Device Directive 93/42/EEC Annex VII Class 1, and RoHS European Directive 2011/65/EU
