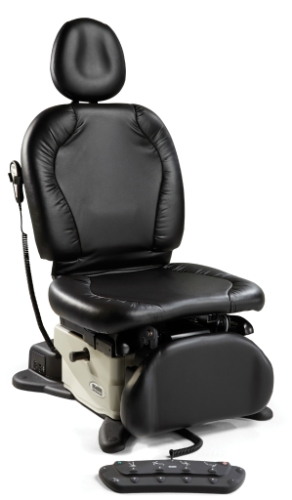

Midmark 630 HUMANFORM Power Procedures Table
Welcome to the new age of clinician-inspired, patient-focused design. The Midmark 630 HUMANFORM™ procedures table is the first of its kind. Designed to complement the human body with more natural movement and endless positioning capabilities – it is the new benchmark in patient and provider-centered performance with exclusive features, including:
- Motion Profiling™ enables more natural, human-like movement that works with the patient and provider for more precise positioning, a clear view of the surgical site and improved ergonomics
- Active Sensing Technology™ (AST) enhances patient and provider safety by helping avoid harmful impact during movement, such as objects being caught under the seat and footrest

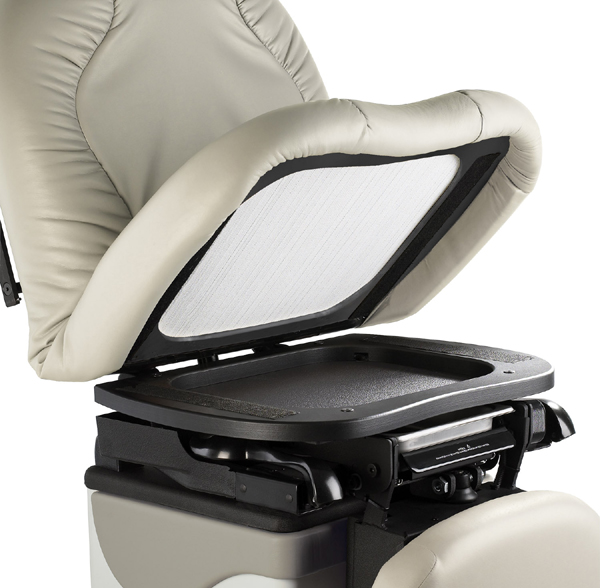

- Premium Comfort System™ utilizes unique, contoured upholstery and an adjustable footer to cradle the patient for a soothing, chair-like feel
- Barrier-Free® design addresses the needs of a changing patient demographic with a best-in-class, 18-inch low seat height and 650-pound weight capacity
- Power height, back, foot and tilt
- Hand and foot controls standard

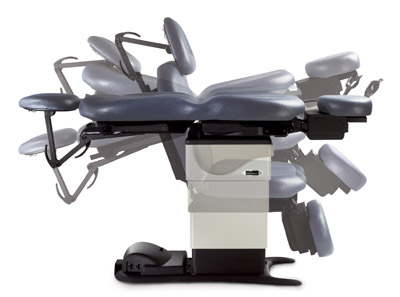

- Programmability and rotation (optional)
- 18" to 40" seat height adjustment (non-rotational models)
- 21.5" to 43.5" seat height adjustment (rotational models)
- Available in 28" or 32" upholstery widths
View Midmark Upholstery Selections
Please call 800-419-5795 to inquire about additional accessories, upholstery options or to order!
Midmark 630 HUMANFORM Power Procedures Table
Specifications
- Table Weight: 455 lbs
- Shipping Weight: 525 lbs
- Patient Load Rating: 450 lb. (204 kg)
- Height: Minimum 19” (48.3 cm) Maximum 40” (101.6 cm)
- Seat Tilt Angle Range: 0° to 30°
- Back Support Angle Range: 0° to 85°
- Foot Support Angle Range: 0° to 90°
- Upholstery Width Dimensions: Headrest: 12” (30.5 cm) Back support: 24”-26” (61-66 cm) Seat: 28” (71.1 cm) Foot support: 18” (45.7 cm)
- Patient Support Surface Length: Flat position: 72” (182.9 cm)
- Flat position with headrest extended: 83” (210.8 cm)
- Paper Roll Holder: Holds 18” x 3.5” paper roll (45.7×8.9 cm)
- Optional Electrical Outlet Rating: 115 VAC, 3 Amps
- Electrical Ratings:
115 VAC, 10 Amps, 50/60 Hz (for standard models)
115/230 VAC, 7.5/3.8 Amps, 50/60 Hz (for rotation models)
115 VAC, 7 Amps, 50/60 Hz (for heated top models) - Safety Standards: UL 60601-1 and CAN/CSA C22.2 No. 601.1-M90
ADDITIONAL UPHOLSTERY OPTIONS:
| 002-1648-xxx Upholstery Top - 32" wide Premium | $808.00 | |
| 002-1650-xxx Upholstery Top - 32" wide Ultra Premium | $1,108.00 |
00
ADDTIONAL ACCESSORIES AVAILABLE
- Arm Systems/Armboards
- Controls (Additional)
- Headrests/Footrests
- Instrument Trays IV Poles
- Knee Crutches
- Accessory Rails
- Miscellaneous
