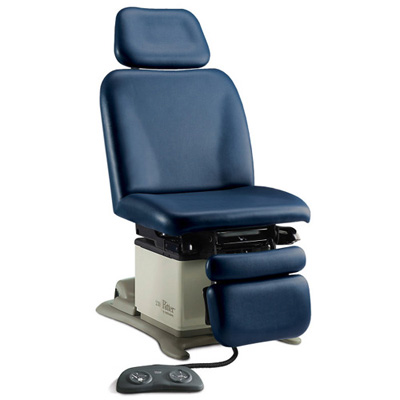

Ritter 230 Power Procedures Table
The Ritter 230 Universal Power Procedures Table with power height, back, foot and tilt, allows you to effortlessly and precisely position patients for a multitude of procedures.
- Optional hospital grade outlets allow easy access to electrical power
- Lithotomy: Extending the stirrups and treatment pan, lowering the foot support, and slightly tilting the table, provide the perfect lithotomy position for OB/GYN examinations and procedures.
- Flat: The table supports examinations and procedures requiring supine, prone, left lateral, or right lateral positioning, when in the flat position.
- Knee-Chest: The foot support can be easily reconfigured, and the table properly positioned, to set up the knee-chest position for colon and rectal examinations and procedures.
- Trendelenburg: offers a full 30° of tilt.
- The simple touch of a pedal on either side of the table offers 350 degrees of rotation; touch the pedal again to lock the table in place.
- The optional adjustable arm system accessory offers a sense of security for patients and a stable and secure platform to assist them in getting on and off the table.
- With the simple touch of a lever, the arms can be rotated and locked into one of three positions, so the arms are in the right place for you.
Ritter Upholstery Selections
Ritter 230 Power Procedures Table
Specifications
- Table Weight: 455 lbs
- Shipping Weight: 525 lbs
- Patient Load Rating: 450 lb. (204 kg)
- Height:
Minimum 22.5” (57.2 cm)
Maximum 40” (101.6 cm) - Seat Tilt Angle Range: 0° to 30°
- Back Support Angle Range: 0° to 85°
- Foot Support Angle Range: 0° to 90°
- Upholstery Width Dimensions:
Headrest: 18” (45.7 cm)
Back support: 27” (68.6 cm)
Seat: 27” (68.6 cm)
Foot support: 18” (45.7 cm) - Patient Support Surface Length:
Flat position: 72” (182.9 cm)
Flat position with headrest extended: 83” (210.8 cm) - Paper Roll Holder Capacity:
Holds 18” x 3.5” paper roll (45.7×8.9 cm) - Stainless Steel Treatment Pan Dimensions:
11.5” L x 9” W x 2.5” D (29.2×22.9×6.4 cm) - Electrical Ratings
115 VAC, 10 Amps, 50/60 Hz (for electrical outlet models)
115/230 VAC, 7/3.5 Amps, 50/60 Hz (for non-electrical outlet models)
115/230 VAC, 7.5/3.8 Amps, 50/60 Hz (for rotation models) - Safety Standards
UL 60601-1 and CAN/CSA C22.2 No. 601.1 – M90
Please Call for Pricing and Accessory Options: 800-419-5795
Table Options
Ritter 230 Power Procedures Table, call to order:
Other Models:
| 230-002 Basic Table w/receptacle, 002-0824-XXX Seamless Upholstery Top | $9,718.00 |
| 230-003 Basic Table w/rotation, 002-0824-XXX Seamless Upholstery Top | $11,601.25 |
