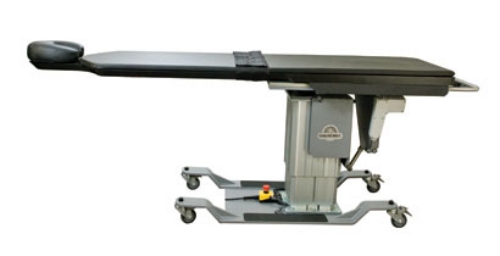

The Oakworks® CFPM 400 C-Arm Imaging Table is the best valued 4 movement imaging table in the mobile imaging table market. Incorporating OAKWORKS® brand reputation for quality & reliability, the CFPM400 is designed to accommodate mobile c-arm and ceiling suspended imaging systems. It’s dynamic height range of 26" to 44" accommodates low height patient wheelchair transfers to maximum height c-arm requirements for full lateral imaging. Mounted on a low profile base, this mobile table can be secured via 4 locking casters and provides 56" of metal free imaging area. The CFPM400 is FDA listed, ETL approved and CE marked.
Features:
- patient weight capacity: 500 lb. (227kg.)
- carbon fiber top: 22” x 84” (56cm x 213cm)
- motion 1: Height Range 26” - 44” (66cm x 112cm)
- motion 2: 10” overall manual travel top (12cm)
- motion 3: Trendelenburg tilt +/ ¯15°
- motion 4: Lateral Tilt +/ ¯15°
- controls: 1 foot, 1 hand
- table weight: 375 lbs. (170 kg.)
- warranty: 4 year
- Regulatory: FDA, ETL, CE
Choice of Top Configurations:
22” x 84” Carbon Fiber Top with Integrated Head Rest (56" of metal free imaging space)
24” x 80” Carbon Fiber Top with Rectangular Top (52" of metal free imaging space)
Included Accessories
Table top pad, Head Support pads, 1 each of 2” (5cm) thick x 12” (31 cm) (square) and 4” (10 cm) thick x 12” (31 cm) (square), and 1 crescent face rest cushion. The three positioning pads provide optimal positioning capabilities for both prone and supine applications
Specifications
- Table Top Dimensions: 22" (56 cm) x 84" (213 cm) Carbon Fiber with Integrated Head Rest
- Metal Free Imaging Area: 56" (142 cm)
- Patient Weight Capacity: 500 lbs. (227 kg.)
- Height Range: 26" – 44" (66 cm – 112 cm)
- Frame: Single Tower Steel Base
- Electronics: 110VAC lift motor + 2x24VDC tilting motors
- Controls: 1 foot control + 1 hand control + power kill switch
- Table Weight: 375 lbs. (188 kg.)
- Warranty: 4 Year Limited Warranty
