Features

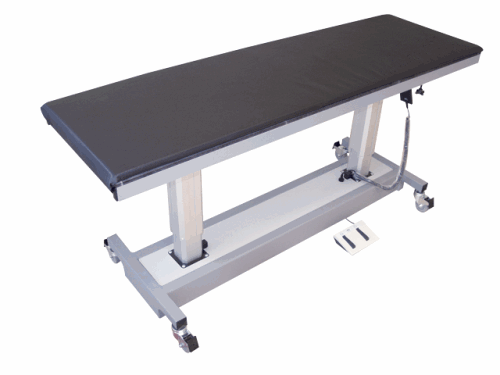

OAKWORKS® Polycarbonate C-arm Table, our most cost effective table solution (costs less than most refurbished C-arm tables) is ideal for pain treatment centers, surgical centers, and other multi-disciplinary medical facilities.
- The dual tower lift design, compatible with all major C-arms,
- allows easy patient access with safe boarding from any part of the table.
- The polycarbonate top provides excellent imaging quality.
- The 22" of manual travel top allows for fingertip control of patient positioning.
- And self-leveling, a centralized cable management system and table top pad.
Specifications
- Maximum Working Load: 450 lbs (205 kg)
- Weight: 350 lbs (159 kg)
- Height Range: 31" - 43" (79 cm - 109 cm)
- Width: 24" (61 cm)
- Length: 78" (198 cm)
- Top: manual with 22" (56 cm) overall travel
- Electronics: Dual 110 volt motors
- Controls: low voltage; 1 foot, 1 hand
- Tilt: ±15° Trendelenburg / reverse Trendelenburg
- Frame: Dual tower steel base
distance between towers: 38.75" (98 cm)
distance between top and frame: lowest- 23" (58 cm), highest - 34.75" (88 cm)
distance between casters: length - 63.5" (161 cm), width - 25" (64 cm)
