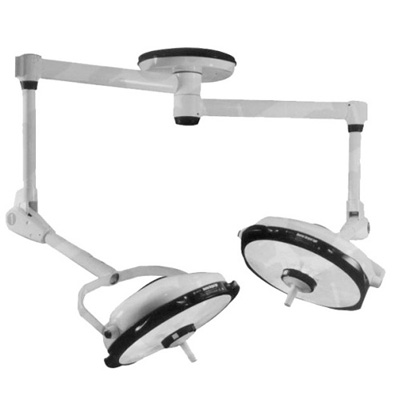

Surgical lighting fixture with central hub mount, from which one or two horizontal arms radiate. Each fixture includes a central hub and either one or two lighthead/suspension arm assemblies. The rotary suspension shaft of the surgical lighthead moves on tapered roller bearings at one end of the horizontal arm.
- Depth of Field: 26 inches
- Cylinder of Light:18 inches
- Peak Intensity: 18 inches
- Intensity Levels: Up to 10,000 footcandles or 107,600 lux.
- Cool Illumination: Optical coatings remove 98% of all unwanted heat.
- Color Rendering Index: 92
- Continuous Rotation: 360° at all critical joints
- Lateral Illumination: 90°
- Continuous Light: If a lamp fails, automatically changes to spare lamp
- Lamp Life: 1,000 hours
- Refurbished 1 year warranty
Specifications
- Maneuverable: When positioned at any point, the fixture moves freely, smoothly and quietly throughout its range of maneuverability, without drifting.
- Vertical Suspension System. The rotary suspension shaft of the surgical lighthead moves on tapered roller bearings at one end of the horizontal arm.
- The horizontal support arm provides unrestricted (continuous) rotation as follows an overall radius of 70 7/8†(1800mm).
